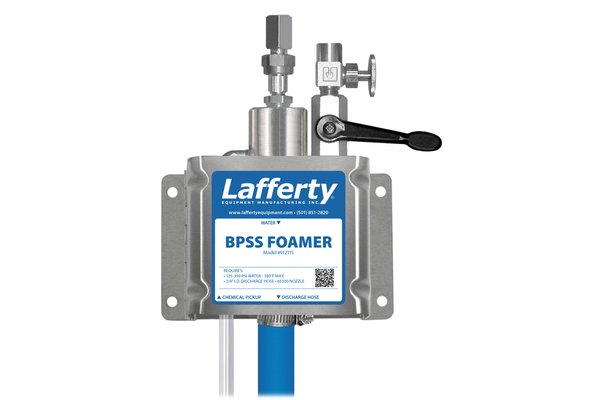

BPSS Foamer

The BPSS Foamer is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at a distance. This stainless steel venturi injection system uses boosted water pressure (125 – 350 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the foam hose and fan nozzle at distances up to 13 feet.

SKU: 912115 Category:

Description

Overview

The BPSS Foamer is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at a distance. This stainless steel venturi injection system uses boosted water pressure (125 – 350 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the foam hose and fan nozzle at distances up to 13 feet.
Key Features

  • Stainless steel foamer body for maximum durability and chemical resistance
  • Designed for foam cleaning medium to large surfaces
  • Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Fan pattern nozzle for quick coverage (up to 13′ range)
  • Covers up to 500 sq ft (46.5 sq m) in 1 minute
  • Adjustable foam consistency (wet/dry)
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Available with a polypropylene foamer body (#912105)
  • See other configurations of Lafferty boosted water pressure foamers in Catalog 2

Includes

  • Stainless steel mounting bracket
  • Machined stainless steel foamer body
  • 20 color-coded precision metering tips to set dilution ratios
  • 50′ discharge hose, polypropylene foam wand & fan nozzle

Requirements

Chemical Concentrate
Water
Temperature up to 180°F
Pressure 125 to 350 PSI
Flow 3.0 GPM @ 250 PSI
Supply Line 1/2″
Compressed Air up to 4 CFM
Hose 3/4″ ID x 50′
Nozzle 65300
Dilution Ratio Range 679:1 to 6:1 @ 250 PSI

Options

Stainless Steel Hose Rack
Large # 224150
Stainless Steel Jug Racks
Jug Rack, SS, 1 Gallon, Round/Square # 224200
Jug Rack, SS, 2 1/2 Gallon # 224210
Jug Rack, SS, 5 Gallon # 224215
Safe Flow Lid™ for 1 Gallon Jugs
Lid, Suction Tube, and Strainer # 709101
Alternate Check Valves – EPDM Standard
Check Valve, Chemical, PP/Viton, 1/4″ # 491315
Check Valve, Air, SS/Viton, 1/4″ # 491306
