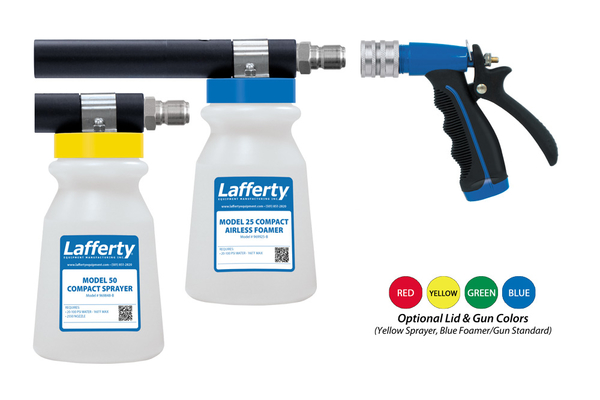

Compact Model 25/50 Airless Foamer / Sprayer Kit – Color Options Available

Compact Foamers and Sprayers are a convenient alternative to wall-mounted Foam / Rinse / Sanitize systems. These medium-volume, hose-end, venturi injection units use city water pressure (20 – 100 PSI) to draw chemical concentrate from the attached bottle and blend it into the water stream. With the Model 25 Compact Foamer attached, the accurately diluted solution flows through the foam wand to create a clinging, wet foam which is then projected on to any surface up close or at distances up to 12 feet. Quick disconnect the bottle and foam assembly to rinse through just the trigger gun. Quick connect the Model 50 Compact Sprayer to dilute and apply sanitizing solution as non-foaming chemical spray.

SKU: 969955 Category:

Description

Overview

Compact Foamers and Sprayers are a convenient alternative to wall-mounted Foam / Rinse / Sanitize systems. These medium-volume, hose-end, venturi injection units use city water pressure (20 – 100 PSI) to draw chemical concentrate from the attached bottle and blend it into the water stream. With the Model 25 Compact Foamer attached, the accurately diluted solution flows through the foam wand to create a clinging, wet foam which is then projected on to any surface up close or at distances up to 12 feet. Quick disconnect the bottle and foam assembly to rinse through just the trigger gun. Quick connect the Model 50 Compact Sprayer to dilute and apply sanitizing solution as non-foaming chemical spray.

Key Features

  • Foamer creates rich, wet foam to increase chemical contact time and effectiveness
  • Foam provides visual confirmation of complete coverage
  • Projects foam up to 12′ (depending on water pressure)
  • The stainless steel quick disconnect socket features 6 retaining balls to lock the bottle assembly securely in place
  • Quick disconnect the foam assembly to rinse
  • Quick connect the sprayer assembly to apply a fan pattern liquid spray
  • Light, 32oz bottles reduce wrist and arm fatigue and the risk of repetitive strain injuries
  • No moving parts!  Venturi action dilutes chemical consistently
  • Great performance with pressure as low as 20 PSI
  • Durable!  Foamer and injector bodies are machined in the USA, not molded
  • Outlasts and outperforms similar molded plastic products
  • Impact resistant lids stand up to substantial abuse
  • Color-coded lids and guns encourage chemical awareness and safety (blue, red, yellow, or green available)
  • No wetted brass components for optimal chemical resistance
  • See other compact foam/spray systems in Catalog 11

Includes

  • (1) Polypropylene Model 25 Foamer body with stainless steel QD plug
  • (1) Polypropylene Model 50 Sprayer body with recessed fan nozzle and stainless steel QD plug
  • (1) Heavy-duty trigger gun with stainless steel 6-ball QD socket (blue gun standard)
  • (2) 32oz wide-mouth, HDPE bottles
  • (1) Heavy-duty sprayer bottle lid (yellow standard)
  • (1) Heavy-duty foamer bottle lid (blue standard)
  • (2) 20 color-coded precision metering tips to set dilution ratios

Requirements

Chemical Concentrate
Water
Temperature up to 160°F
Pressure 20 – 100 PSI
Supply Line 1/2″
Foam Spray
Flow: 1.25 GPM @ 40 PSI Flow: 2.3 GPM @ 40 PSI
Nozzle: A-25 Foam Wand Nozzle: 2550
Dilution Ratio Range @ 40 PSI
Foam 286:1 to 6:1
Spray 526:1 to 5:1

Options

Stainless Steel Hose Rack
Large # 224150
Additional Bottles
Bottle, HDPE, 32oz # 709082
