Overview

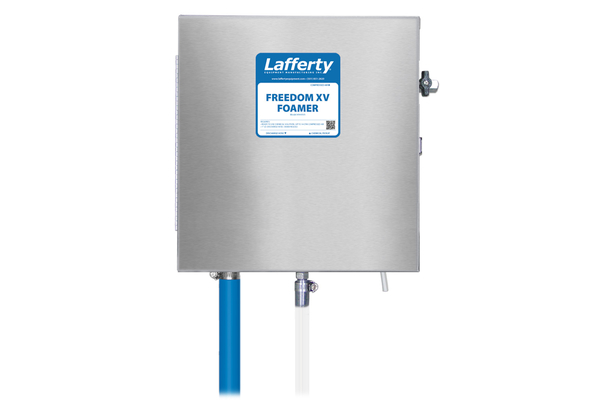

The Freedom XV Foamer is a high volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 25 feet. This unit features a stainless steel enclosure and uses a rugged 1/2″ Sandpiper air-operated, double-diaphragm pump to draw ready-to-use chemical from a user-supplied tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and nozzle.

Key Features

• Draws pre-diluted chemical from a static tank
• Rugged 1/2″ AODD pump with Santoprene diaphragms
• The chemical flow rate is regulated by the foamer body to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
• Projects an extra-high volume of  rich, clinging foam which increases chemical contact time and effectiveness
• Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
• Zero degree nozzle for up to 25′ foam throw
• Covers up to 500 sq ft (46.5 sq m) in 1 minute
• Adjustable foam consistency (wet/dry)
• Chemical resistant wetted components ensure durability and years of reliable service
• Available as a portable unit (#944186)
• See other air-operated foamers and sprayers in Catalog 4

Includes

• Lockable, all stainless steel pump enclosure
• Air inlet ball valve and regulator/filter
• Sandpiper 1/2″ AODD pump
• Machined polypropylene pump-fed foamer body
• 50′ discharge hose, stainless steel ball valve, polypropylene foam wand & zero degree nozzle

Requirements

Options
