Overview

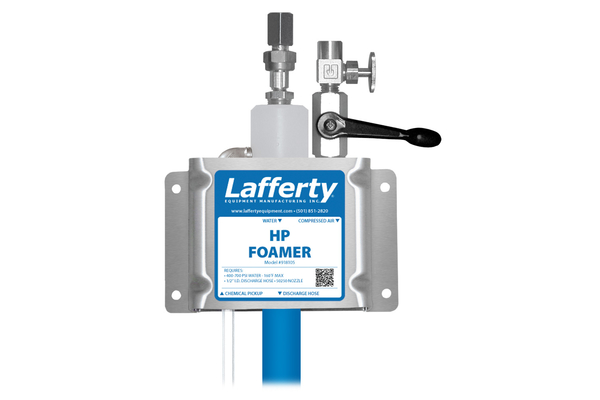

The HP Foamer is a 2 GPM @ 700 PSI foam applicator for projecting foaming chemicals on to any surface up close or at a distance. This venturi injection system uses high water pressure (400 – 700 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the foam hose and fan nozzle at distances up to 13 feet.

Key Features

• Projects rich, clinging foam which increases chemical contact time and effectiveness
• Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
• Fan pattern nozzle for quick coverage (up to 13′ range)
• Covers up to 500 sq ft (46.5 sq m) in 2 minutes
• Optional zero degree nozzle for increased foam throw
• Adjustable foam consistency (wet/dry)
• Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
• Industrial-strength design holds up in tough environments
• Available with a stainless steel foamer body for pressures over 700 PSI (#918115)
• Available with a higher flow rate (#917105- Hyper Foamer)
• See other Lafferty high water pressure chemical applicators in Catalog 3

Includes

• Stainless steel mounting bracket
• Machined polypropylene foamer body
• 20 color-coded precision metering tips to set dilution ratios
• 50′ discharge hose with polypropylene open flow foam wand and fan nozzle

Requirements

Options
