Description
Overview

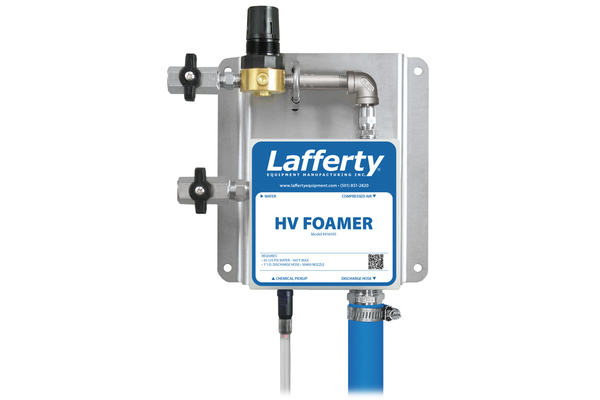

The HV Foamer is a high volume foam applicator for projecting foaming chemicals on to any large surface. This venturi injection system uses standard city water pressure (35 – 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. A high volume of rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and fan nozzle at distances up to 15 feet (25 feet with optional zero degree nozzle).
Key Features
- Designed for foam cleaning large areas and equipment
- Projects a high volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern nozzle for fast coverage (up to 15′ range)
- Covers up to 500 sq ft (46.5 sq m) in 1 minute
- Optional 0º nozzle for up to 25′ range
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- High concentrate model available for tough cleaning jobs requiring strong dilution ratios (#916115)
- See other configurations of Lafferty city water pressure foamers in Catalog 1
Includes
- Stainless steel mounting bracket
- Machined polypropylene foamer body
- 20 color-coded precision metering tips to set dilution ratios
- 50′ discharge hose, stainless steel discharge ball valve, polypropylene foam wand and fan nozzle
Requirements
Chemical Concentrate |
---|
Water | |
---|---|
Temperature | up to 160°F |
Pressure | 35 to 125 PSI |
Flow | 4 GPM @ 40 PSI |
Supply Line | 3/4″ |
Compressed Air | up to 5 CFM |
Hose | 1″ ID x 50′ |
Nozzle | 50400 |
Dilution Ratio Range | 914:1 to 6:1 @ 40 PSI |
Options
Stainless Steel Hose Rack | |
---|---|
Large | # 224150 |
Stainless Steel Jug Racks | |
---|---|
2 ½ Gallon (8 ½” x 10 ½”) | # 224210 |
5 Gallon (12″ x 12″) | # 224215 |
5 Gallon Round Locking | # 224216 |
Safe Flow Lid™ for 1 Gallon Jugs | |
---|---|
Lid, Suction Tube, and Strainer | # 709101 |
Optional Zero Degree Nozzle | |
---|---|
Nozzle, NPB, 3/4″ – 00400 | # 180154 |
Alternate Check Valves – EPDM Standard | |
---|---|
Check Valve, Chemical, PP/Viton, 1/4″ | # 491315 |
Check Valve, Air, SS/Viton, 1/4″ | # 491306 |
