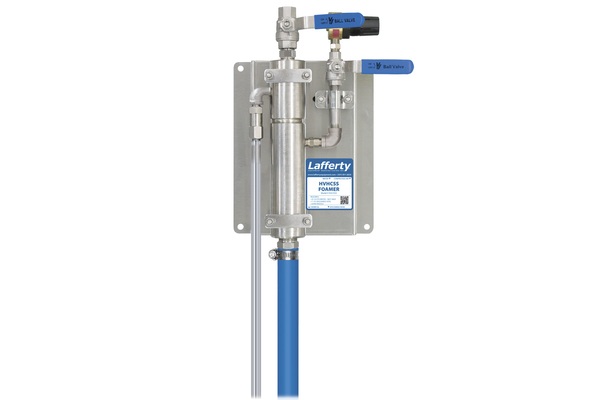

HVHCSS Foamer

The HVHCSS Foamer is a high volume, “high concentrate” foam applicator that will produce strong dilution ratios for the toughest cleaning jobs. Weaker dilution ratios are achieved with metering tips. This stainless steel venturi injection system uses standard city water pressure (35 – 125 PSI) to draw and blend a high concentration of chemical concentrate into the water stream to create a very strong chemical solution. A high volume of rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and zero degree nozzle at distances up to 25 feet (15 feet with optional fan nozzle).

SKU: 916115SS Category:

Description

Overview

The HVHCSS Foamer is a high volume, “high concentrate” foam applicator that will produce strong dilution ratios for the toughest cleaning jobs. Weaker dilution ratios are achieved with metering tips. This stainless steel venturi injection system uses standard city water pressure (35 – 125 PSI) to draw and blend a high concentration of chemical concentrate into the water stream to create a very strong chemical solution. A high volume of rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and zero degree nozzle at distances up to 25 feet (15 feet with optional fan nozzle).

Key Features

  • Achieves strong chemical concentrations up to 2.8 to 1
  • Weaker dilution ratios controlled by precision metering tips
  • Designed for foam cleaning large areas and equipment
  • Projects a high volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Zero degree nozzle for up to 25′ range
  • Adjustable foam consistency (wet/dry)
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength stainless steel design holds up in tough environments
  • See other configurations of Lafferty city water pressure foamers in Catalog 1

Includes

  • Stainless steel mounting bracket
  • Machined stainless steel foamer body
  • 20 color-coded precision metering tips to set dilution ratios
  • 50′ discharge hose
  • Stainless steel discharge ball valve, stainless steel foam wand, and zero degree nozzle

Requirements

Chemical Concentrate
Water
Temperature up to 180°F
Pressure 35 to 125 PSI
Flow 3.5 GPM @ 50 PSI
Supply Line 1/2″
Compressed Air up to 5 CFM
Hose 1″ ID x 50′
Nozzle 50400
Dilution Ratio Range 720:1 to 3:1 @ 40 PSI

Options

Stainless Steel Hose Rack
Large # 224150
Stainless Steel Jug Racks
2 ½ Gallon (8 ½” x 10 ½”) # 224210
5 Gallon (12″ x 12″) # 224215
5 Gallon Round Locking # 224216
Safe Flow Lid™ for 1 Gallon Jugs
Lid, Suction Tube, and Strainer # 709101
Optional Fan Nozzle
Nozzle, NPB, 3/4″ – 50400 # 180160
