Overview

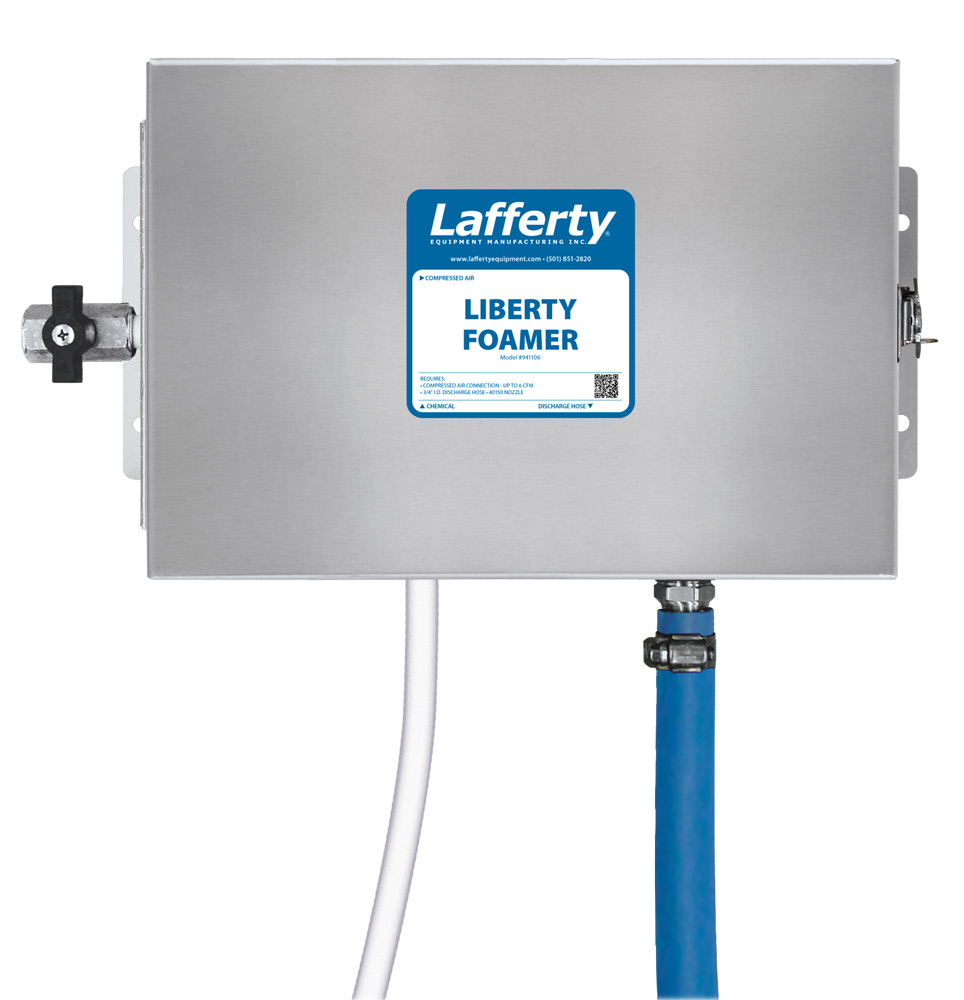

The Liberty Foamer is a medium volume foam applicator for projecting ready-to-use foaming chemicals on to any surface up close or at distances up to 10 feet. This unit features a stainless steel enclosure and uses a cost-effective Flojet air-operated, double-diaphragm pump to draw pre-diluted chemical from a user-supplied tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and fan nozzle.

Key Features

• Draws pre-diluted chemical from a static tank
• Cost-effective Flojet AODD pump (Santoprene diaphragms)
• The chemical flow is regulated by the foamer body to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
• Projects a usable amount of rich, clinging foam which increases chemical contact time and effectiveness
• Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
• Fan pattern nozzle with 10′ foam throw
• Covers up to 500 sq ft (46.5 sq m) in 2.5 minutes
• Adjustable foam consistency (wet/dry)
• Chemical resistant wetted components ensure durability and years of reliable service
• Available as a portable unit (#941219)
• See other air-operated foamers and sprayers in Catalog 4

Includes

• Lockable, stainless steel pump enclosure
• Air inlet ball valve and regulator/filter
• Flojet 1/4″ AODD pump
• Machined polypropylene pump-fed foamer body
• 50′ discharge hose, stainless steel ball valve, polypropylene foam wand & fan nozzle

Requirements
