Overview

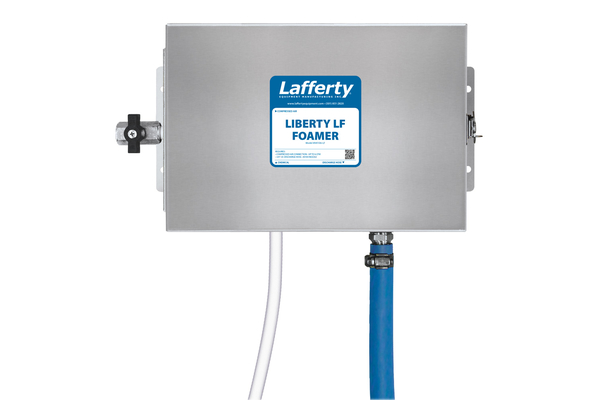

The Liberty LF Foamer is a “low volume” foam applicator for projecting ready-to-use foaming chemicals on to any surface up close or at distances up to 9 feet. This unit features a stainless steel enclosure and uses a cost-effective 1/4″ Flojet air-operated, double-diaphragm pump to draw pre-diluted chemical from a static tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and fan nozzle.

Key Features

• Draws pre-diluted chemical solution from a static tank
• Uses a cost-effective 1/4″ Flojet AODD pump with Santoprene diaphragms
• The solution flow rate is regulated by the foamer body match the low-range of the air pump’s specified operating range which prevents the pump from running, at maximum capacity
• Projects a “low volume” of rich, clinging foam which increases chemical contact time and effectiveness
• Ideal for foaming small areas and near sensitive equipment
• Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
• Fan pattern nozzle with up to 9′ foam throw
• Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
• Adjustable foam consistency (wet/dry)
• Chemical resistant wetted components ensure durability and years of reliable service
• Available as a portable unit (#941219-LF)
• Available with a higher flow rate (#941106)
• See other air-operated foamers and sprayers in Catalog 4

Includes

• Lockable, stainless steel enclosure
• Air inlet ball valve and regulator/filter
• Flojet 1/4″ AODD pump
• Machined polypropylene pump-fed foamer body
• 50′ discharge hose, stainless steel ball valve, polypropylene foam wand & fan nozzle

Requirements

Options
