Description
Overview

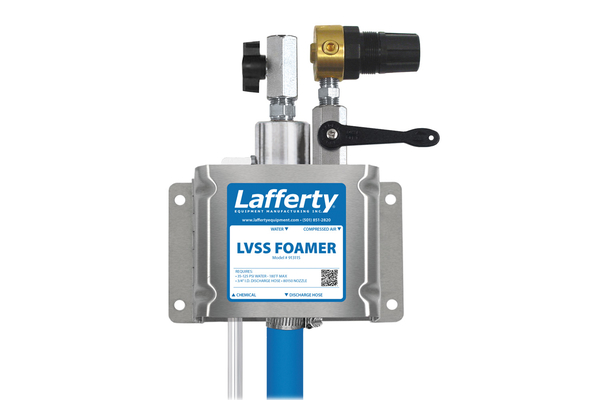

The LVSS Foamer is a low volume foam applicator for projecting foaming chemicals on to small objects or tight areas while minimizing overspray. This stainless steel venturi injection system uses city water pressure (35 – 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the hose and fan nozzle on to any surface up close or at distances up to 9 feet.
Key Features
- Machined stainless steel foamer body for maximum chemical and temperature resistance
- Designed for cleaning small areas, around sensitive equipment or for close-range foaming
- Projects a low volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern nozzle for quick, precise coverage with little over-spray (up to 9′ range)
- Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available with a machined polypropylene body (#913105)
- See other configurations of Lafferty city water pressure foamers in Catalog 1
Includes
- Stainless steel mounting bracket
- Machined stainless steel foamer body
- 20 color-coded precision metering tips to set dilution ratios
- 40′ discharge hose, stainless steel discharge ball valve, polypropylene foam wand and fan nozzle
Requirements
Chemical Concentrate |
---|
Water | |
---|---|
Temperature | up to 180°F |
Pressure | 35 to 125 PSI |
Flow | 0.65 GPM @ 40 PSI |
Supply Line | 1/2″ |
Compressed Air | up to 1.25 CFM |
Hose | 3/4″ ID x 40′ |
Nozzle | 80150 |
Dilution Ratio Range | 149:1 to 5:1 @ 40 PSI |
Options
Stainless Steel Hose Rack | |
---|---|
Large | # 224150 |
Stainless Steel Jug Racks | |
---|---|
1 Gallon Round/Square | # 224200 |
1 Gallon Round/Square Locking | # 224200-L |
2 ½ Gallon (8 ½” x 10 ½”) | # 224210 |
5 Gallon (12″ x 12″) | # 224215 |
5 Gallon Round Locking | # 224216 |
Safe Flow Lid™ for 1 Gallon Jugs | |
---|---|
Lid, Suction Tube, and Strainer | # 709101 |
Alternate Check Valves – EPDM Standard | |
---|---|
Check Valve, Chemical, PP/Viton, 1/4″ | # 491315 |
Check Valve, Air, SS/Viton, 1/4″ | # 491306 |
Stainless Steel Foam Wand (Upgrade) | |
---|---|
Convert PP Wand to SS (New Units) | # 536603-X |
