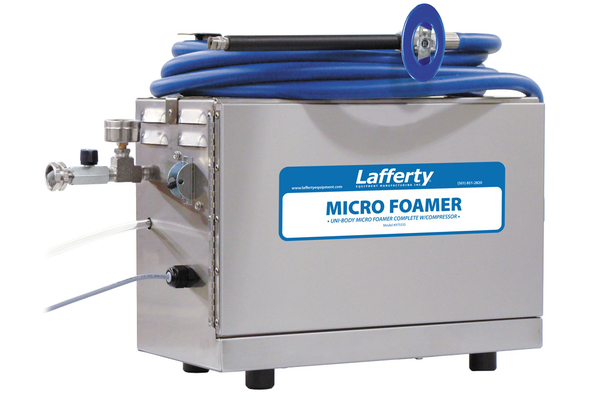

Micro Foamer

The Micro Foamer is an all-in-one, low-volume foam applicator featuring a stainless steel enclosure and on-board 120V air compressor with GFI protection. This portable venturi injection system uses city water pressure (40 – 80 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution using precision metering tips. Rich, clinging foam is created by injecting compressed air into the solution to increase volume and coverage ability. The foam is then projected through the discharge hose, wand and fan nozzle on to any surface.

SKU: 975535 Category:

Description

Overview

The Micro Foamer is an all-in-one, low-volume foam applicator featuring a stainless steel enclosure and on-board 120V air compressor with GFI protection. This portable venturi injection system uses city water pressure (40 – 80 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution using precision metering tips. Rich, clinging foam is created by injecting compressed air into the solution to increase volume and coverage ability. The foam is then projected through the discharge hose, wand and fan nozzle on to any surface.

Key Features

  • Small size for maximum portability (only one foot tall)
  • Requires only water and electric hookups
  • Quiet, 120V air compressor with GFI protection
  • Projects a low volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Venturi action draws chemical concentrate from any container
  • Adjustable foam consistency (wet/dry)
  • Chemical resistant wetted componentsensure durability and years of reliable service
  • See other air-operated foamers and sprayers in Catalog 4

Includes

  • Locking, stainless steel enclosure with integrated handle and hose rack
  • 120V air compressor with regulator/filter & 8′ cord
  • Water inlet ball valve with pressure/flow gauge
  • 6′ chemical suction tube and strainer
  • 10 color-coded precision metering tips to set dilution ratios
  • Machined polypropylene foamer body
  • 20′ discharge hose assembly, stainless steel ball valve, wand and stainless steel fan nozzle

Requirements

Chemical Concentrate
Water
Temperature up to 160°F
Pressure 40 to 80 PSI
Flow 0.35 GPM @ 50 PSI
Supply Line 1/2″
Compressed Air up to .75 CFM
Hose 1/2″ ID x 25′
Nozzle 4040

Options

Alternate Air Check Valve – EPDM Standard
Check Valve, Air, SS, (Viton/Hastelloy) # 491306-1
TL Check Valve, Solution, PVC / Viton,1/4″ # 491440-V
