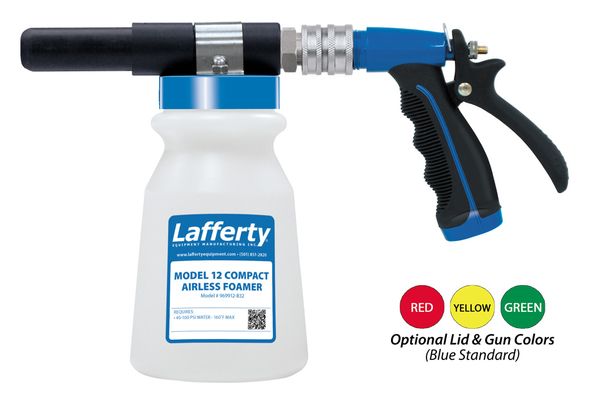

Model 12 Compact Airless Foamer- Color Options Available

The Model 12 Compact Airless Foamer is a unique very low volume hose-end foam gun for diluting and applying foaming chemicals to any small or up close surface. This unit uses standard city water pressure to draw chemical concentrate from the attached bottle and blend it into the water stream. The accurately diluted solution flows through the foam wand to create a clinging, wet foam which can be projected in either a wider fan pattern or “adjusted” to a narrow pattern for longer foam throw up to 6 feet.

SKU: 969912-B32 Category:

Description

Overview

The Model 12 Compact Airless Foamer is a unique very low volume hose-end foam gun for diluting and applying foaming chemicals to any small or up close surface. This unit uses standard city water pressure to draw chemical concentrate from the attached bottle and blend it into the water stream. The accurately diluted solution flows through the foam wand to create a clinging, wet foam which can be projected in either a wider fan pattern or “adjusted” to a narrow pattern for longer foam throw up to 6 feet.

Key Features

  • Creates clinging, wet foam which increases chemical contact time and effectiveness
  • Foam provides visual confirmation of complete coverage
  • Adjustable foam pattern settings for fast coverage at distances up to 6′ (depending on water pressure)
  • Durable! Foamer body is machined in the USA, not molded
  • Outlasts and outperforms similar molded plastic products
  • The stainless steel quick disconnect socket features 6 retaining balls to lock the bottle and foam assembly securely in place
  • Quick disconnect the foam assembly to rinse
  • With less than half the flow rate of competing models, you save money
  • Light, 32oz bottle reduces wrist and arm fatigue and as well as the risk of repetitive strain injuries
  • No moving parts!  Venturi action dilutes chemical consistently with precision metering tips
  • Impact resistant lid stands up to substantial abuse
  • Color-coded lids and guns help identify chemicals and enhance user safety (blue standard – red, yellow, or green optional).
  • Available with a smaller 22oz bottle (#969912-B)
  • Available with a higher flow rate (#969925-B32)
  • Available without the gun for quickly changing chemicals or equipment on the job (#969910-B)
  • Compact units are also offered as sprayers
  • See more Lafferty chemical applicators in Catalog 11

Includes

  • Machined polypropylene foamer body
  • Stainless steel quick disconnect plug & 6-ball socket
  • 32oz wide-mouth, HDPE bottle
  • Heavy-duty bottle lid
  • 20 color-coded precision metering tips to set dilution ratios
  • Trigger gun with inlet screen/filter
  • Adjustable fan pattern nozzle

Requirements

Chemical Concentrate
Water
Temperature up to 160°F
Pressure 40 – 100 PSI
Flow .54 GPM @ 40 PSI
Supply Line 1/2″
Dilution Ratio Range 123:1 to 10:1 @ 40 PSI

Options

Stainless Steel Hose Racks
Large # 224150
Small # 224145
Additional Bottles
Bottle, HDPE, 32oz # 709082
