Overview

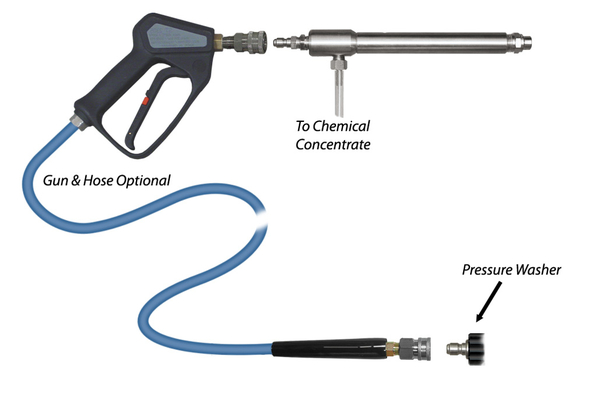

Designed to work with a 2.2 – 6 GPM pressure washer. The Model 20 HC Stainless Steel Hose End Airless Foamer is a “high concentrate” airless foam applicator for quickly applying foaming chemicals at strong dilution ratios. Weaker dilution ratios are controlled with metering tips. This unit draws and blends a high concentration of chemical concentrate into the water stream to create a strong solution. The solution then flows through the airless foam wand which draws in atmospheric air to create and project wet, clinging foam on to surfaces up close or at distances up to 18 feet.

Key Features

• Designed for use with 2.2 – 6 GPM pressure washers
• Achieves chemical concentrations up to 2.9 to 1 for those tough applications
• Weaker dilution ratios controlled by precision metering tips
• Projects wet, clinging foam which increases chemical contact time and effectiveness
• Foam impacts at a lower pressure than spray, allowing a pressure washer to be used on more delicate surfaces
• To rinse, simply quick disconnect the entire assembly and replace your original rinse nozzle
• Use the fan nozzle for wide coverage or the zero degree nozzle for maximum range (up to 18′)
• Draws chemical from any container
• Your equipment is protected because no chemical passes through the pump, hose or gun
• Almost no maintenance necessary: does not require pads, o-rings, or other wear parts
• Foamer body is one solid piece of machined stainless steel – built to last!
• For dilution ratios 6.5:1 and weaker use Model #969620 for increased foam throw distance
• See other Lafferty high pressure applicators in Catalog 3

Includes

• Machined stainless steel foamer body
• Quick connect plug for connecting to your gun
• Fan pattern foam nozzle
• Zero degree foam nozzle
• 10′ chemical suction tube and strainer
• 5 color-coded precision metering tips to set dilution ratios

Requirements

Options
