Overview

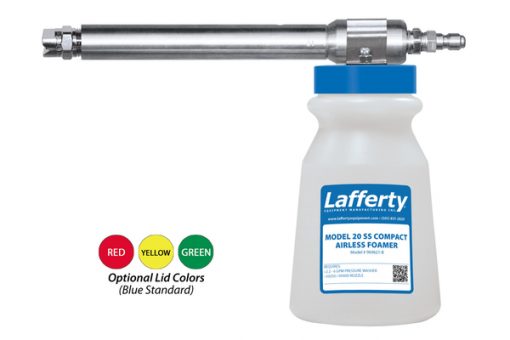

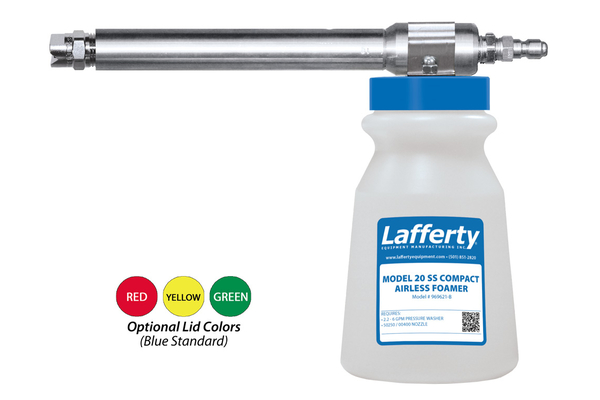

Designed to work with a 2.2 – 6 GPM pressure washer. The Model 20 Stainless Steel Compact Foamer is a high pressure chemical foam applicator for quickly applying foaming chemicals to surfaces up close or at a distance. This venturi injection unit draws and accurately dilutes chemical concentrate from the attached bottle and applies the solution as rich, wet foam in a fan pattern or use the zero degree nozzle for foaming at distances up to 25 feet.

Key Features

• Designed for use with 2.2 – 6 GPM pressure washers
• Projects wet, clinging foam which increases chemical contact time and effectiveness
• Foam impacts at a lower pressure than spray, allowing a pressure washer to be used on more delicate surfaces
• To rinse, simply quick disconnect the entire assembly and replace your original rinse nozzle
• Use the fan nozzle for wide coverage or the zero degree nozzle for maximum range (up to 25′)
• Lightweight, 32oz bottle reduces wrist and arm fatigue as well as the risk of repetitive strain injuries
• Your equipment is protected because no chemical passes through the pump, hose or gun
• Almost no maintenance necessary: does not require pads, o-rings, or other wear parts
• Foamer body is one solid piece of machined stainless steel – built to last!
• Impact resistant lid stands up to substantial abuse
• Available without the bottle to draw from any sized container (#969620)
• See other Lafferty high pressure applicators in Catalog 3

Includes

• Machined stainless steel foamer body
• 32oz wide-mouth, HDPE bottle
• Heavy-duty blue bottle lid (red, yellow, or green optional)
• 20 color-coded precision metering tips to set dilution ratios
• Quick connect plug for connecting to your gun
• Fan pattern foam nozzle and zero degree foam nozzle

Requirements

Options
