Overview

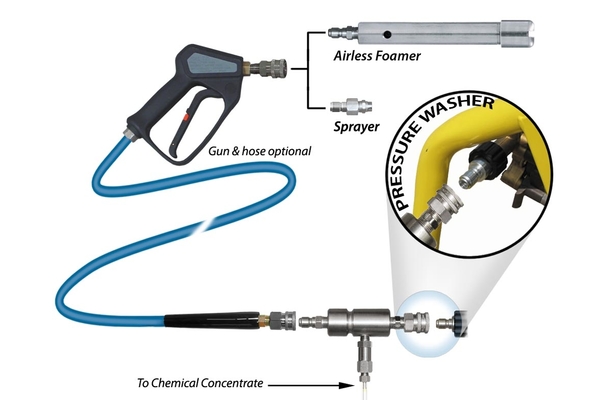

Designed to work with a 5 – 8 GPM pressure washer. The Model 40 Stainless Steel Combo Airless Foamer/Sprayer Kit is an airless foam and spray applicator featuring a chemical injector quick connected to the pressure washer discharge. This unit draws and blends chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the hose and gun to the airless foam wand which injects atmospheric air to create and project wet, clinging foam on to surfaces up close or at distances up to 30 feet. Quick connect the fan pattern sprayer nozzle to apply a chemical spray.

Key Features

• Designed for use with 5 – 8 GPM pressure washers
• Draws chemical out of any sized container
• Chemical injector at the pressure washer output eliminates the need to carry chemicals
• Quick connect the airless foam wand to project wet, clinging foam and increase chemical contact time and effectiveness
• Foam impacts at a lower pressure than spray, allowing a pressure washer to be used on more delicate surfaces
• Use the fan pattern foam nozzle for wide coverage or remove it for increased range
• Quick connect the fan pattern sprayer nozzle to apply a chemical spray
• Your equipment is protected because no chemical passes through the pump
• Industrial-strength, all stainless steel design ensures durability and reliable performance
• Available for smaller pressure washers (#969710, 969720)
• See other Lafferty high pressure applicators in Catalog 3

Includes

• Quick connect machined stainless steel injector body
• 6′ chemical suction tube and strainer
• 20 color-coded precision metering tips to set dilution ratios
• Quick connect machined stainless steel airless foam wand with fan nozzle
• Quick connect fan pattern spray nozzle

Requirements

Options
