Overview

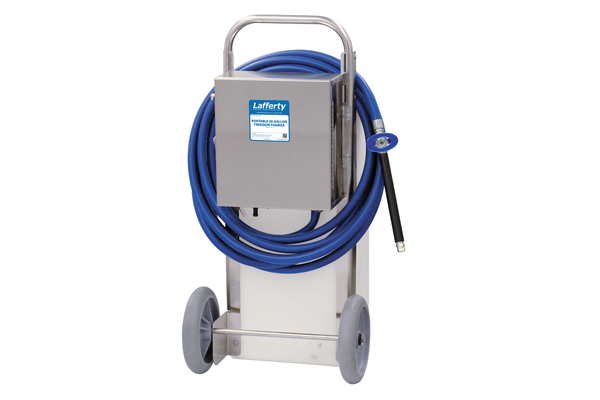

The Portable 2-Wheel 20 Gallon Freedom Foamer is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 10 feet. This unit features a stainless steel 2-wheel cart and lockable enclosure and uses a rugged 1/4″ Yamada air-operated, double-diaphragm pump to draw ready-to-use chemical from the 20 gallon tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and fan nozzle.

Key Features

• Draws pre-diluted chemical from the 20 gallon tank mounted to the heavy-duty, 2-wheel cart
• Rugged Yamada AODD pump (Teflon diaphragms)
• The chemical flow rate is regulated by the foamer body to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
• Projects a usable volume of rich, clinging foam which increases chemical contact time and effectiveness
• Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
• Fan pattern nozzle with 10′ foam throw
• Covers up to 500 sq ft (46.5 sq m) in 2.5 minutes
• 16 minutes of foaming time per 20 gallons of solution
• Adjustable foam consistency (wet/dry)
• Balanced weight distribution to prevent tipping
• Available in five color-coded configurations
• Chemical resistant wetted components ensure durability and years of reliable service
• Do not use chlorine / strong alkaline chemicals (see #943183)
• Available with a 40 or 60 gallon tank (#943184, 943186)
• See other air-operated foamers and sprayers in Catalog 4

Includes

• Stainless steel 2-wheel cart with non-marking tires
• 20 gallon, wide-mouth, HDPE chemical tank with drain
• Lockable, stainless steel pump enclosure
• Air inlet ball valve and regulator/filter
• Yamada 1/4″ AODD pump
• Machined polypropylene pump-fed foamer body
• 40′ discharge hose, stainless steel ball valve and polypropylene foam wand & fan nozzle
