Portable 5 Gallon A-40SS Airless Foamer

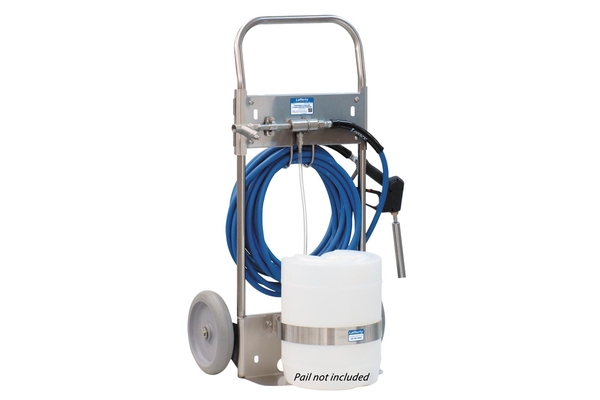

The Portable A-40SS Airless Foamer is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 10 feet without compressed air. Featuring an all stainless steel cart assembly, this stainless steel venturi injection system uses boosted water pressure (125 – 350 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose and trigger gun to the “airless” foam wand which draws in atmospheric air to create and project wet, clinging foam.

SKU: 912910 Category:

Description

Overview

The Portable A-40SS Airless Foamer is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 10 feet without compressed air. Featuring an all stainless steel cart assembly, this stainless steel venturi injection system uses boosted water pressure (125 – 350 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose and trigger gun to the “airless” foam wand which draws in atmospheric air to create and project wet, clinging foam.

Key Features

  • No compressed air required
  • Designed for foam cleaning medium to large sized areas
  • Projects wet, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Projects foam up to 10′ (depending on water pressure)
  • Chemical resistant components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Available as a wall-mounted system (#912905)
  • See other configurations of Lafferty boosted water pressure foamers in Catalog 2

Includes

  • All stainless steel 2-wheel cart with non-marking tires & integrated hose rack
  • Stainless steel, round, 5 gallon jug rack (square available)
  • Machined stainless steel injector body
  • Machined stainless steel airless foam wand
  • 20 color-coded precision metering tips to set dilution ratios
  • 50′ discharge hose & trigger gun

Requirements

Chemical Concentrate
Water
Temperature up to 180°F
Pressure 125 to 350 PSI
Flow 2.84 GPM @ 250 PSI
Supply Line 1/2″
Hose 3/8″ ID x 50′
Nozzle A-40SS Airless Foam Wand
Dilution Ratio Range 649:1 to 13:1 @ 250 PSI

Options

5 Gallon Pail
Pail, 5 Gallon Round W/ Suction Stem # 709105
Safe Flow Lid™ for 1 Gallon Jugs
Lid, Suction Tube, and Strainer # 709101
Square Jug Rack Conversion
Specify Round or Square Jug Racks at time of order
Alternate Check Valve – EPDM Standard
Check Valve, Chemical, SS, Viton, 1/4″ # 491324-V
