Precision Foamer

The Precision Foamer is a low volume foam applicator that is ideal for jobs where precision application and tight control of overspray are required. An air-operated, double-diaphragm FloJet Pump draws ready-to-use chemical from one static tank or blends water and chemical concentrate from two static tanks. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose, trigger gun and fan nozzle.

SKU: 935155 Category:

Description

Overview

The Precision Foamer is a low volume foam applicator that is ideal for jobs where precision application and tight control of overspray are required. An air-operated, double-diaphragm FloJet Pump draws ready-to-use chemical from one static tank or blends water and chemical concentrate from two static tanks. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose, trigger gun and fan nozzle.

Key Features

  • Projects a low volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Can draw ready-to-use chemical solution or blend water and chemical concentrate on the fly
  • Adjustable foam consistency (wet/dry)
  • Has a low compressed air requirement and can be powered by a small 110V compressor
  • Chemical resistant wetted component sensure durability and years of reliable service
  • Available as a portable unit with an on-board air compressor (#935165)
  • Can be equipped with up to 300′ of twin-line hose
  • See other air-operated foamers and sprayers in Catalog 4

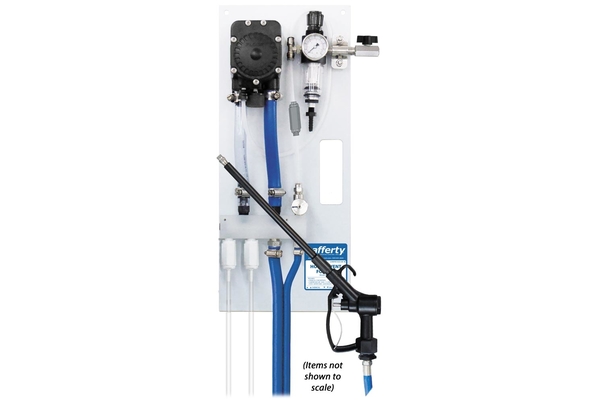

Includes

  • Polypropylene mounting plate
  • FloJet 1/4″ AODD pump with Santoprene diaphragm
  • Two 6′ chemical suction tubes and strainers
  • 20 color-coded precision metering tips to set dilution ratios
  • Air inlet ball valve and regulator/filter
  • Stainless steel precision foamer body
  • 50′ discharge hose assembly, trigger gun, wand, and stainless steel fan nozzle

Requirements

Chemical Concentrate
Water to Fill Tank
Compressed Air 1.5 CFM

Options

Stainless Steel Hose Rack
Large # 224150
Alternate Air Pump Diaphragm – Santoprene Standard
Viton Diaphragm Upgrade For Flojet Air Pump # 710756
Kalrez Diaphragm Upgrade For Flojet Air Pump # 710755
Alternate Air Check Valve – EPDM Standard
Check Valve, Air, SS, 1/4″ MM (Viton / Hast) # 491306
Alternate Chemical Check Valve – EPDM Standard
Check Valve, Chemical, PP, 1/4″ (Viton) # 491402
