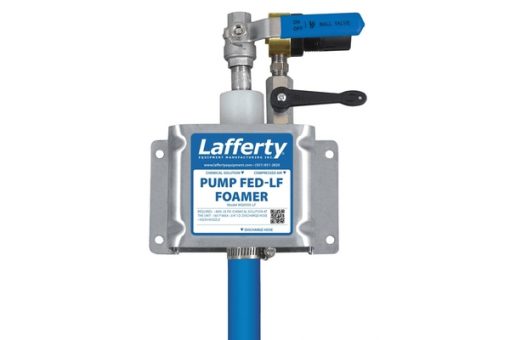

Pump Fed LF Foamer

The Pump Fed LF Foamer is a low volume foam applicator for projecting ready-to-use foaming chemicals on to small objects or tight areas while minimizing overspray. This unit receives ready-to-use chemical solution from a central chemical feed system and creates rich, clinging foam by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and fan nozzle on to any surface up close or at distances up to 9 feet.

SKU: 920105-LF Category:

Description

Overview

The Pump Fed LF Foamer is a low volume foam applicator for projecting ready-to-use foaming chemicals on to small objects or tight areas while minimizing overspray. This unit receives ready-to-use chemical solution from a central chemical feed system and creates rich, clinging foam by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and fan nozzle on to any surface up close or at distances up to 9 feet.

Key Features

  • Receives ready-to-use chemical solution from a central chemical feed system
  • Designed for foam cleaning small areas, around sensitive equipment or for close range foaming
  • Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Fan pattern nozzle for quick coverage (up to 9′ range)
  • Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
  • Adjustable foam consistency (wet/dry)
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Available with a higher flow rate (#920105)
  • See other pump-fed applicators in Catalog 5
  • Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Calculator

Includes

  • Stainless steel mounting bracket
  • Stainless steel inlet and discharge ball valves
  • Machined polypropylene foamer body
  • 50′ hose, polypropylene foam wand & fan nozzle

Requirements

Ready-to-Use Chemical Solution
Temperature up to 160°F
Pressure 35 to 125 PSI
Flow .60 GPM @ 40 PSI
Supply Line 1/2″
Compressed Air 2 CFM
Hose 3/4″ ID x 50′
Nozzle 40150

Options

Stainless Steel Hose Rack
Large # 224150
Foam Solution Check Valves & Strainer
Check Valve, PP, 1/2” (EPDM) # 491409
Check Valve, PP, 1/2” (Viton) # 491411
Check Valve, SS, 1/2″ (Teflon) # 491350SS-T
SS “Y” Strainer # 150350
Alternate Air Check Valve – EPDM Standard
Check Valve, Air, SS, 1/4″ MM (Viton / Hast) # 491306
Stainless Steel Foam Wand (Upgrade)
Convert PP Wand to SS (New Units) # 536603-X
