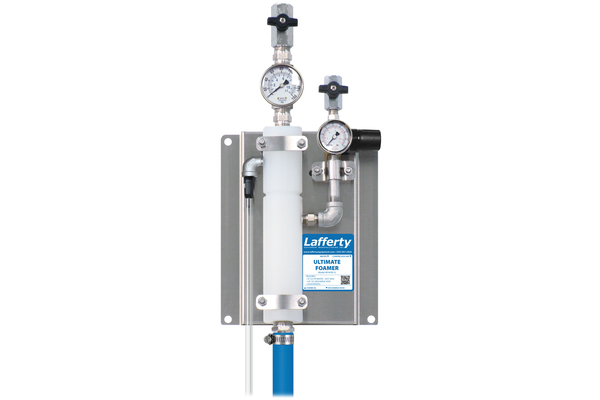

Ultimate Foamer With Gauges

The Ultimate Foamer With Gauges is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at a distance. This venturi injection system uses city water pressure (35 – 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the hose and fan nozzle at distances up to 12 feet. Gauges display incoming water and air pressure.

SKU: 914105-g Category:

Description

Overview

The Ultimate Foamer With Gauges is a medium volume foam applicator for projecting foaming chemicals on to any surface up close or at a distance. This venturi injection system uses city water pressure (35 – 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the hose and fan nozzle at distances up to 12 feet. Gauges display incoming water and air pressure.

Key Features

  • Designed for foam cleaning medium to large surfaces
  • Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Fan pattern nozzle for quick coverage (up to 12′ range)
  • Covers up to 500 sq ft (46.5 sq m) in 2 minutes
  • Adjustable foam consistency (wet/dry)
  • Water and air pressure gauges eliminate guessing to reduce set-up time and help with troubleshooting
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Available without gauges (#914105)
  • See other configurations of Lafferty city water pressure foamers in Catalog 1

Includes

  • Stainless steel mounting bracket
  • Machined polypropylene foamer body
  • Easy-to-read pressure gauges for incoming water and air
  • 20 color-coded precision metering tips to set dilution ratios
  • 50′ discharge hose, stainless steel discharge ball valve, polypropylene foam wand and fan nozzle

Requirements

Chemical Concentrate
Water
Temperature up to 160°F
Pressure 35 to 125 PSI
Flow 1.34 GPM @ 40 PSI
Supply Line 1/2″
Compressed Air up to 3 CFM
Hose 3/4″ ID x 50′
Nozzle 50250
Dilution Ratio Range 306:1 to 6:1 @ 40 PSI

Options

Stainless Steel Hose Rack
Large # 224150
Stainless Steel Jug Racks
1 Gallon Round/Square # 224200
1 Gallon Round/Square Locking # 224200-L
2 ½ Gallon (8 ½” x 10 ½”) # 224210
5 Gallon (12″ x 12″) # 224215
5 Gallon Round Locking # 224216
Safe Flow Lid™ for 1 Gallon Jugs
Lid, Suction Tube, and Strainer # 709101
Stainless Steel Foam Wand (Upgrade)
Convert PP Wand to SS (New Units) # 536603-X
Alternate Check Valves – EPDM Standard
Check Valve, Chemical, PP/Viton, 1/4″ # 491315
Check Valve, Air, SS/Viton, 1/4″ # 491306
