Overview

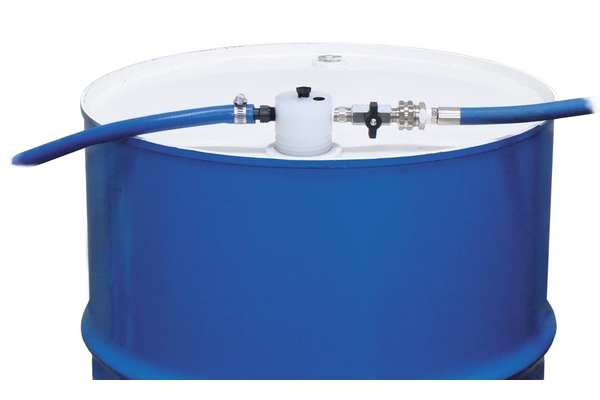

The Uni-Body A-25 Drum Bung Mount Airless Foamer is a drum-mounted, medium volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 6 feet without compressed air. This compact venturi injection system uses standard city water pressure (35 – 125 PSI) to draw and blend chemical concentrate directly from the drum into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose to the “airless” foam wand which draws in atmospheric air to create and project wet, clinging foam.

Key Features

• Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
• Equipped with both fine and coarse threads
• Creates a high volume, flooding spray
• Designed for spraying large surfaces and objects
• Fan pattern nozzle for even coverage
• Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
• Use it where 35-125 PSI water is available
• Alternate configuration discourages unauthorized changes to the dilution ratio by restricting metering tip access
• Available as a wall-mounted unit (#975070)
• See other Lafferty Spray-Alls and more chemical applicators in Catalog 1

Includes

• Machined polypropylene drum bung injector body
• 20 color-coded metering tips for setting dilution ratios
• 50′ discharge hose, stainless steel discharge ball valve, polypropylene wand and stainless steel fan nozzle

Requirements

Options
