Overview

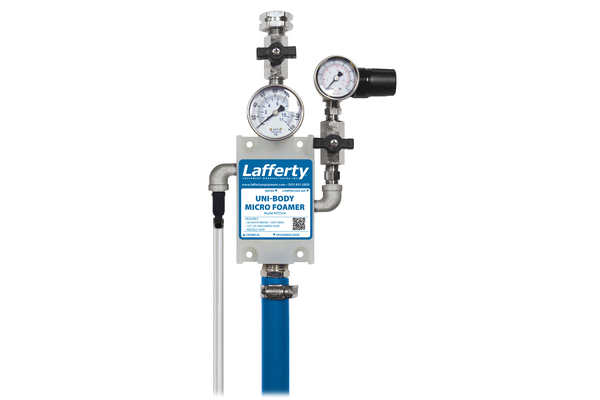

The Uni-Body Micro Foamer is a very low-volume foam applicator that will apply rich, clinging foam onto any surface up close or at short distances. This venturi injection system uses city water pressure (40 – 80 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution using precision metering tips. The perfect amount of rich, clinging foam is created by injecting compressed air into the solution to increase volume and coverage ability. The foam is then projected through the discharge hose, wand and fan nozzle.

Key Features

• Compact and cost effective machined solid polypropylene uni-body design
• Designed for cleaning small areas, around sensitive equipment or for close-range foaming
• Creates a very low volume of rich, clinging foam which increases chemical contact time and effectiveness
• Fan pattern nozzle for quick, precise coverage with little over-spray
• Adjustable foam consistency (wet/dry)
• Gauges display incoming water and air pressure to eliminate guessing
• Dilution ratios controlled with precision metering tips
• Machined foamer body, not molded – Built to last!
• See other configurations of Lafferty city water pressure foamers in Catalog 1

Includes

• Machined polypropylene foamer body
• Incoming water and air pressure gauges
• 10 color coded metering tips for setting dilution ratios
• 25′ discharge hose, stainless steel ball valve, polypropylene foam wand and fan nozzle

Requirements

Options
